AutoCad 3D basic settings

Here we will discuss 3D basic settings of any version of AutoCAD . 3D-basic settings are very essential before drawing an object in 3D view. So for AutoCAD 3D drawing , we  will follow these steps:-

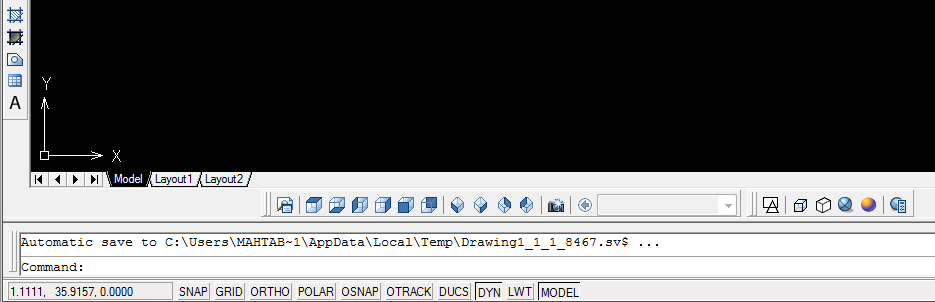

1) First open your AutoCad , you will have such type of interface for 2007 but settings which we are going to discus, are similar for every version. So open your autocad:-

2) As your seeing different bar on different sides. So we also have a bar in left side .Then you have to press right button of mouse on left bar. If you are using any else version than 2007 , so you have  the same bar at top side or down, then press right button of your mouse in this type of bar.

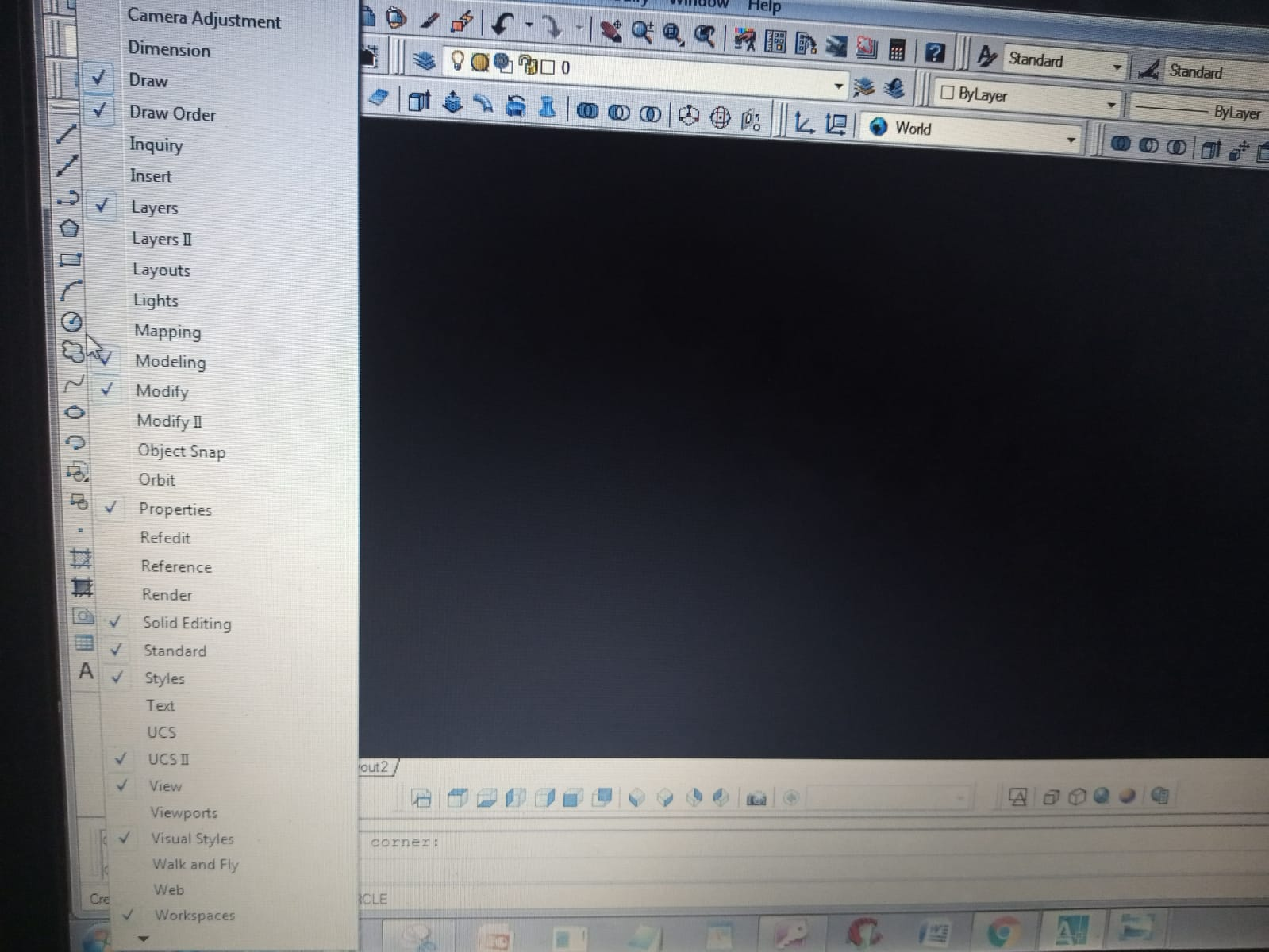

Then you will see such type of menu which will get open :-

3) And you have different options in this menu. So you just First click on Modeling , it will come as like a bar.

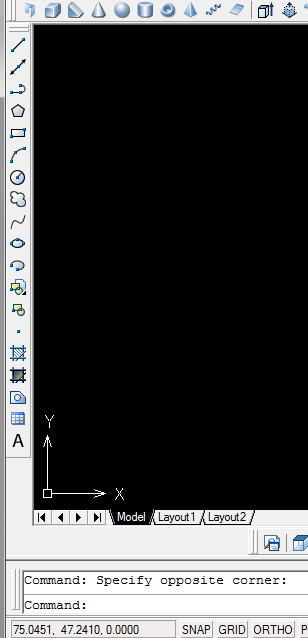

4) Again click right of mouse on left bar so you will have a menu again. If you are using else version than 2007 , So simply click on that bar where you did firstly. So fetch these 4 bars :-

UCS 11 , solid editing , view , visual styles as like:-

5) Now we have to adjust these five bars at sides for our convenience.  So adjust UCS11 to the centre of the page and below the upward bars, as shown:-

6) And Then adjust modeling to the left of UCSII as shown , you can also do as you want :-

7) And the adjust solid editing to right of UCSII  as shown:-

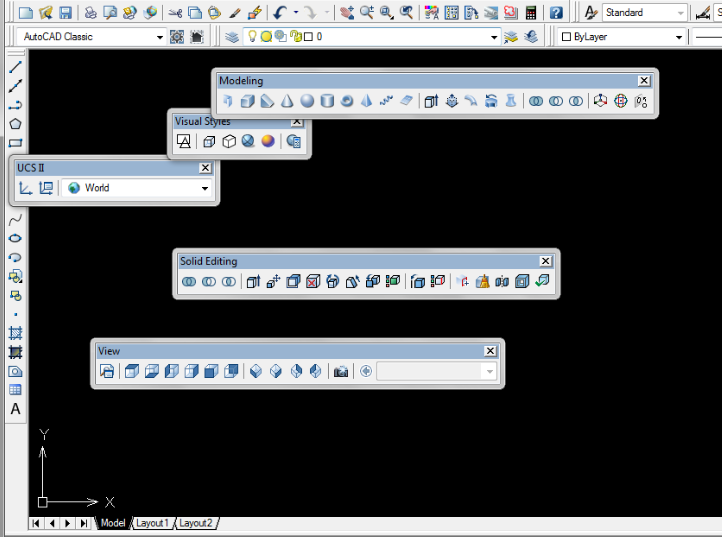

 8) Then take these remaining 2 to the down , as shown:-

So these looks very comfortable for us to manage and select particular icon.

9) So then click on SE isometric icon to on  xyz plane mode for 3D AutoCad drawing. if we donot choose this SE isometric icon , so we will unable to draw 3D drawing in autoCAD.

SO xyz plane will get activated :-

So the settings get completed. Hope so you have gotten that all scenario. So keep visiting my website to get more knowledge. Thankyou
