1 ) Output voltage of comparator with change in voltage , can be observed with . . . . . . . . . . . . . . . analysis .
Choose
single option from these following : -
A ) Interactive
mode ,
B ) Transient ,
C ) DC sweeps ,
D ) AC sweep ,
Correct
answers : - C ) DC sweeps ,
2

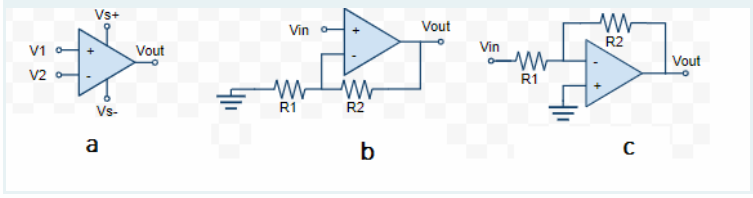

) Which circuit represents voltage
comparator . . . . . . . . . . . . . . . . . . ?
Choose
single option from these following : -
A ) b ,
B ) c ,
C ) a ,
Correct
answers: a
3
) In the given circuit the configuration
of resistor with LED is called . . . . .
. . . . . . . . . . . . . . . ,
Choose
single option from these following : -
A ) Pull up
resistor ,
B ) Pull down
resistor ,
Correct
answers : - A ) Pull up resistor ,
4
) For the given output of comparator
sweep against input voltage , the saturation in1st quadrant can be represented
by expression . . . . . . . . . . . . . . ?
A ) Vin ,
B ) Vin > Vref
,
C ) Vin = Vref ,
Correct
answers : - B ) Vin
> Vref ,
5
) Which represents dual power supply for
op - amp . . . . . . . . . . . . . . . . ?
Choose
single option from these following : -
A ) b ,
B ) a ,
Correct answers : - B ) a ,
