1 ) In XOR gate , the output is zero , if inputs are . . . . . . . . . . : -
Choose
single option from these following : -
A ) same , B
) different ,
C ) may be same or different , D ) None of these ,
Correct
Answer : - A ) same ,

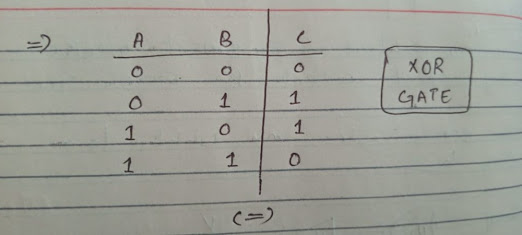

Explanation
: -
2 )
In XOR gate , if we have different inputs , so output will be . . . . . . . . .
. . : -
Choose
single option from these following : -
A ) 0 , B
) 1 ,
C ) infinite , D ) None of
these ,
Correct
Answer : - B ) 1 ,
3 )
The
NAND gate as shown in figure , if X is 1
, so Y will be : -
Choose
single option from these following : -
A ) 0 , B
) 1 ,
C ) infinite , D ) None of these ,
Correct
Answer : - A ) 0 ,
Explanation
: -
As by diagram , the both inputs will be similar because
they are connected by X , So we will get such type of table : -
If X = 1 , So Y will be 0 ,
And if X = 0 , So Y will be 1 .
4 )
If X = 0 and
Y = 1 , So Z will be . . . . . . . . . . . . . . ?
Choose
single option from these following : -
A ) 0 , B
) 1 ,
C ) infinite , D ) None of these ,
Correct
Answer : - B ) 1 ,
Solution
: -
